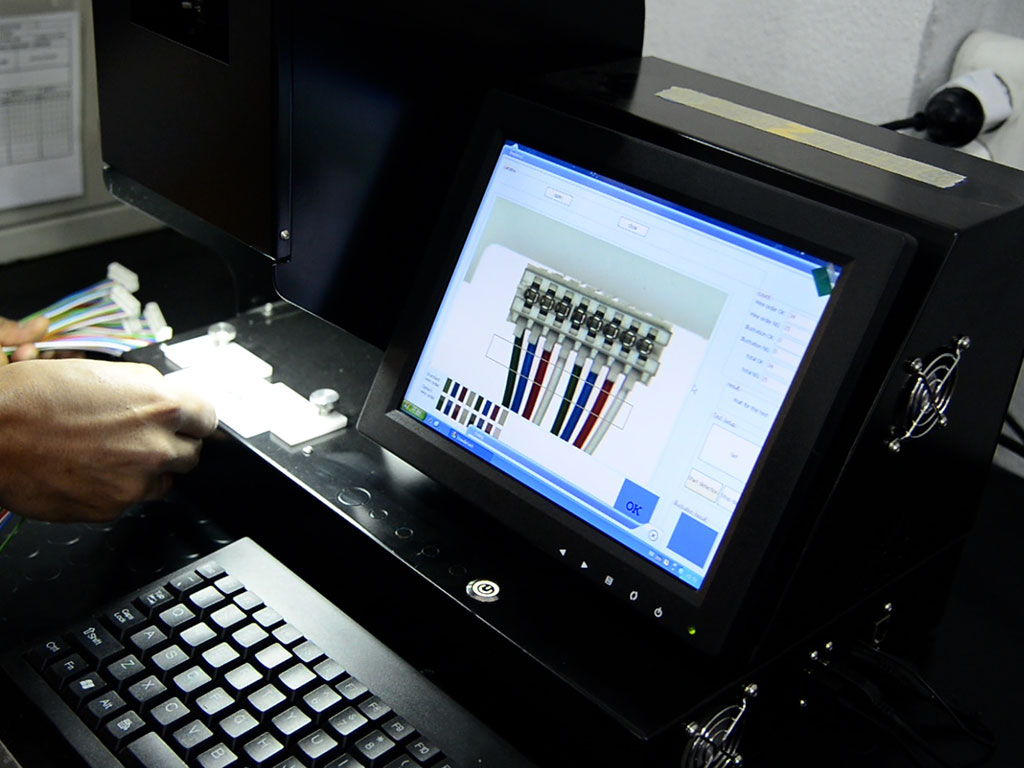

Color, Diameter and Sequence Control
In particular, products with more than one PIN are controlled according to PIN contacts.

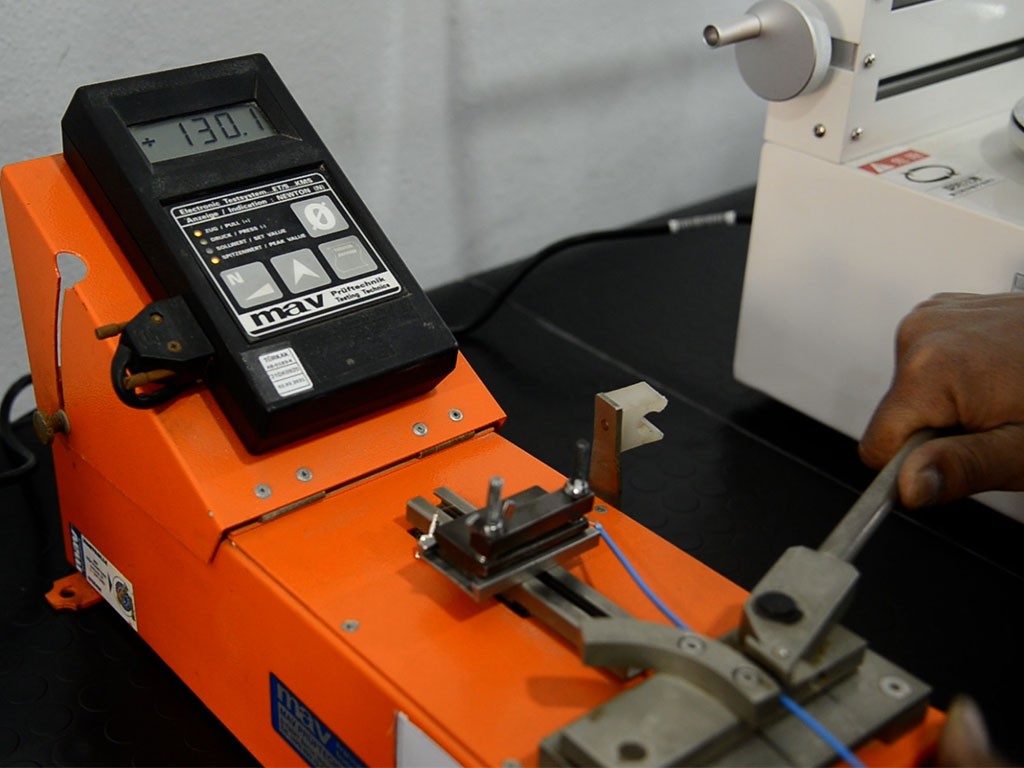

Crimping Force Test
Pulling during die changes or when starting a new process The force of the terminal crimped on the cable is taken according to EN61210 and EN60352 standards.

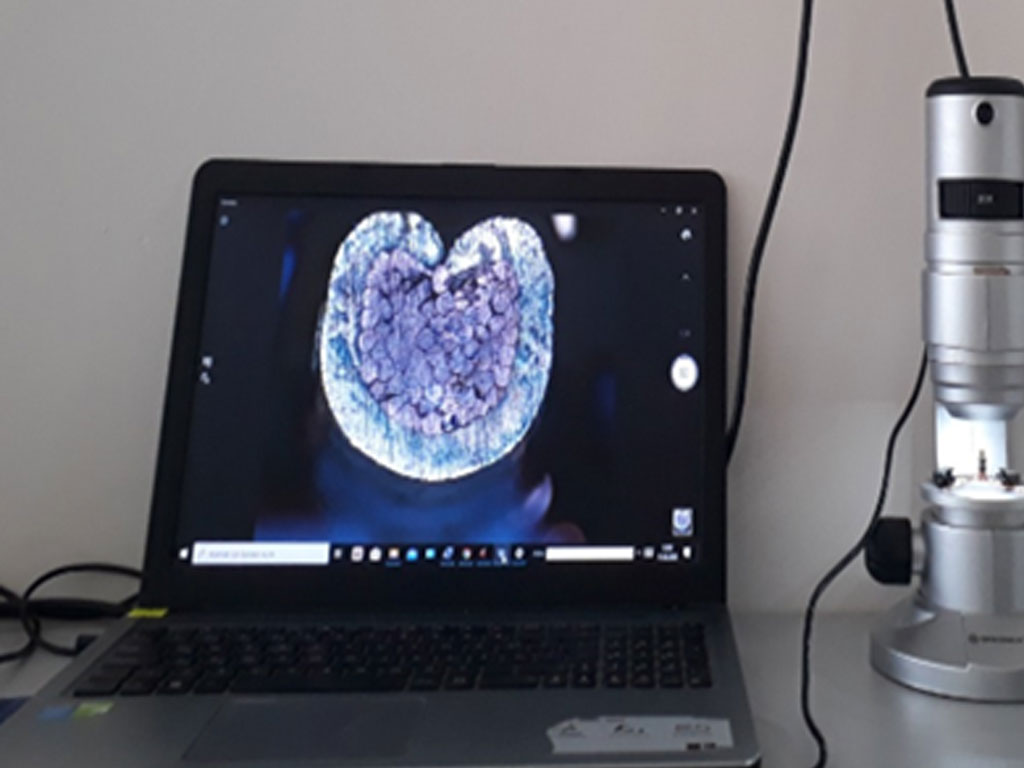

Terminal Section View and Analysis
It is applied to measure the terminal crimp quality. First of all, the foot height of the terminal is selected according to the cable cross-section. A cross-sectional image is taken in the microscope environment of the terminal and the necessary measurements are taken. and analysis results are recorded.

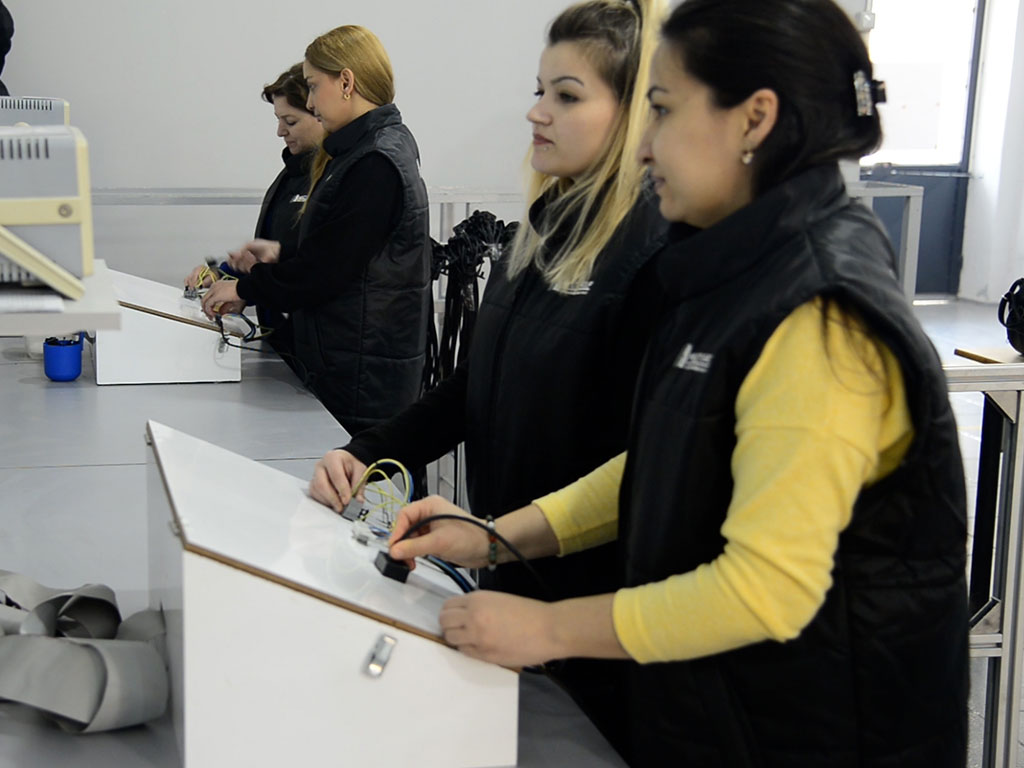

Transmission and Accuracy Tests
From the simplest cable tree to the most complex cable tree, all products are 100% checked at Test Stations.

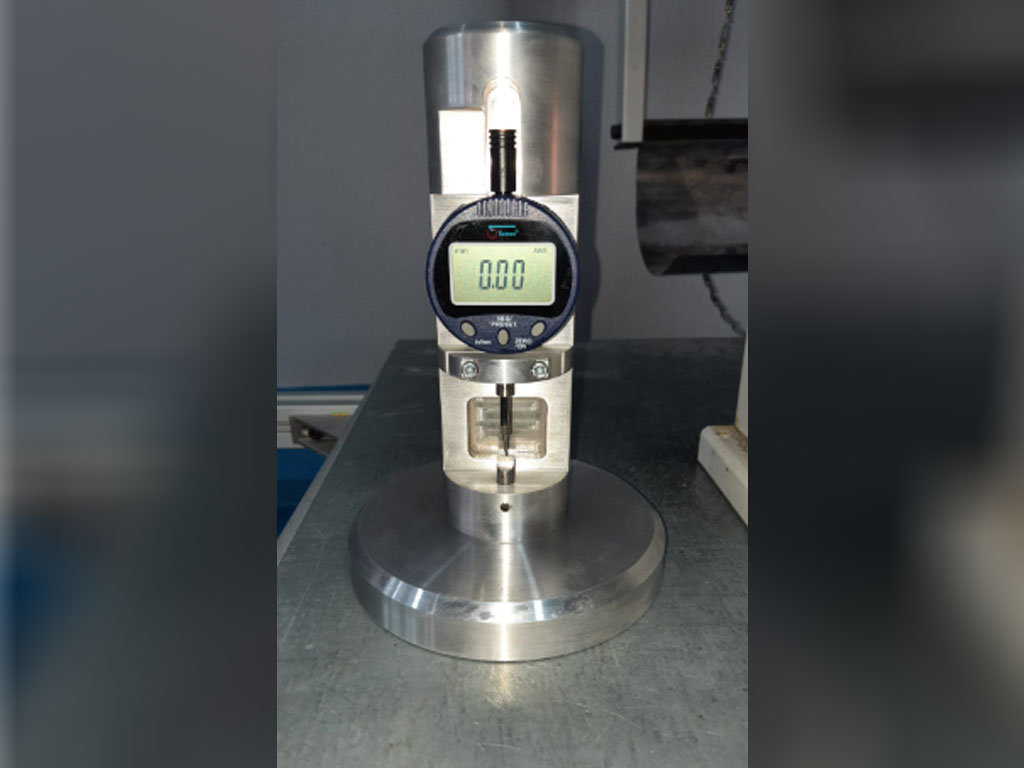

Comparator dial measurement
It measures whether the conductive and insulated parts of the terminal are in ideal dimensions.
